The force side feeding device creates a very stable feeding flow. With stable feeding, the main screw is always fully loaded with materials, which ensure the highest output performance.
The main extruder is used for melting a plastic polymer into molten form, degassing, ventilation, melting with minimum shearing impact, enhanced filter performance, greater homogenization efficiency.
The automatic pressure monitor system is capable of non-stop operation with the pressure sensor from “GEFRAN Italy”. The main purpose of the pressure sensor is to send data to the indicator. The pressure is crucial for providing a consistently uniform flow through the die, and automatically warns the operator of the need to change the screens with a warning light and buzzing sound.
The molten polymer from the extruder is passed to the die head. A rotating blade cuts the hot material as it exits the die hole and falls into a water ring for cooling.
The pelletizing cutter is a universal joint design. The cutter adjusts the blade automatically during operation. Final plastic pellets are in uniform size in order to be sold at a higher price and bring you more profit
The pellets emerging from the pelletizer cutter are carried by the process water through piping to the inlet of the centrifugal dryer. The water is separated through the screens and the pellets are continuously conveyed into the upper section of the dryer where they are discharged from the resin outlet.
The vibrating screener is enabled to select qualified size pellets and extrude out oversized, undersized pellets and dust.

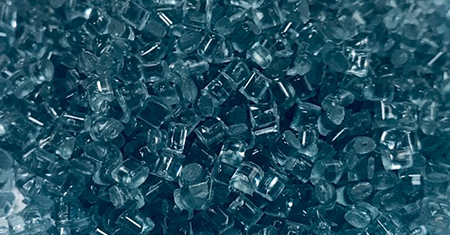

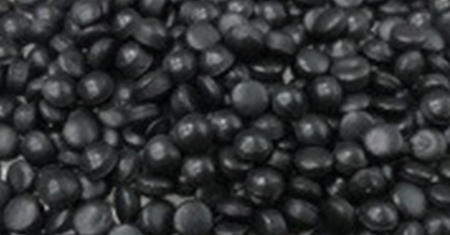

PET, PP, PS, PE, ABS, HIPS, and more. Suitable for plastic rigid materials, including crushed bottles, crushed industrial waste.

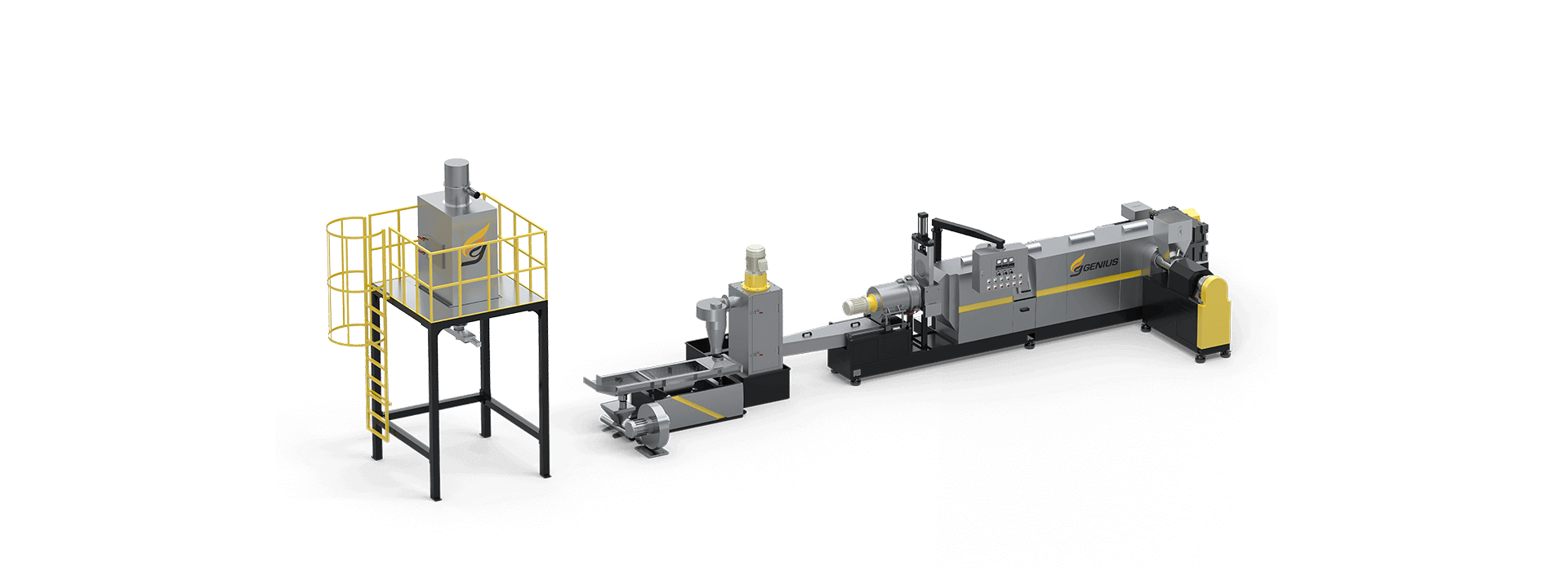

The force side feeding device creates a very stable feeding flow. With stable feeding, the main screw is always fully loaded with materials, which ensures the highest output performance. Increase the output capacity by up to 50%.
The feeding control system monitors the ampere and controls the feeding speed automatically. Only 1~2 operators are required for an entire plant.
Genius recycling specialist team provides customized recycling systems, flexible options from sorting, feeding, degassing, filtration, to storage and packing systems. According to the clients’ needs, presenting a smart and reliable plant.
Increase the output capacity up to 50%
Labor cost is reduced as only 1~2 operators are needed to operate the whole plant.
Extrusion
Degassing
Pelletizing
Cooling
Dryer
Vibrating screener
Blower
